The Ultimate Analog Delay Pedal

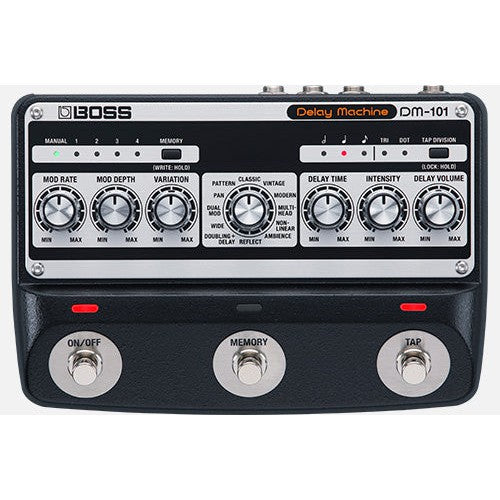

Introducing the DM-101 Delay Machine, where classic sound meets modern power. This exceptional analog delay pedal combines the best of both worlds, featuring eight BBDs under intelligent CPU control. Prepare to be inspired by its 12 unique modes, stereo capabilities, and a rich palette of tonal colours, all while maintaining a pristine 100 percent analog signal processing.

With an impressive 127 user memories, tap tempo functionality, carryover effects, MIDI integration, and more, the DM-101 offers the advanced features and versatility of a digital pedal. However, it never compromises on the vibrant and characterful sound that can only be achieved through authentic analog BBD circuitry.

The DM-101 expands the boundaries of analog delay, offering not only traditional tones but also cleaner sounds and extended delay times. By utilizing eight 2048-stage BBDs instead of the more common 4096-stage BBDs, we've achieved remarkable versatility. Fine-tuning the behavior of these smaller BBDs through precise CPU control allows for a wider range of sounds while preserving the beloved analog characteristics that players cherish in their favorite BBD stomps.

Transition effortlessly between gritty vintage echoes and modern analog delay tones with extended high-frequency clarity with the DM-101. Each of the 12 modes is defined by multiple internal circuit elements, including the number of active BBDs and their connection order, low-pass filter settings, and clocking rates. The Variation knob lets you explore unique parameters specific to each mode, while the Intensity knob allows you to push the delays into saturated self-oscillation.

Thanks to the DM-101's CPU control, it can create sophisticated stereo sounds that are not typically available with other BBD analog delays. For instance, the Pan mode routes each BBD and its feedback loop to alternate points in the stereo field, while the Dual Mod shifts the modulation phase for each output, producing a wide and expansive delay effect. Six out of the 12 modes support stereo operation, offering a range of options from short reverb-like sounds to expansive modulated delays and pattern delays for captivating rhythmic effects.

Embrace the creative possibilities that come with an advanced delay pedal like the DM-101. Enjoy tap tempo functionality and note subdivisions in most modes, along with carryover to maintain repeats even when the effect is bypassed. Store and recall your favorite setups effortlessly with four onboard memories, and expand your real-time control by connecting up to two footswitches or an expression pedal. Take it even further with MIDI I/O, granting you remote access to 127 user memories, MIDI sync, and more. The default audio outputs are set for blended operation, but you can easily reconfigure them for wet/dry rigs or wet-only parallel setups.

Key Features

• The ultimate analog delay pedal realised with advanced BOSS technology

• Fully analog BBD audio circuitry shaped by precision digital CPU control

• Warm, saturated, and highly musical tone

• Twelve modes deliver a wide range of mono and stereo delay textures, created using up to eight internal BBDs

• Stereo output with flexible signal routing options

• Adjustable modulation rate and depth with dedicated knobs

• Variation knob for controlling multiple parameters that are unique to each mode

• Selectable carryover for maintaining delay trails when the effect is bypassed

• MIDI I/O on mini TRS connectors

• Tap tempo function and tap division switch for creating rhythmic delays

• Four onboard memories plus the current panel settings

• 127 user memories accessible via MIDI program change

• Expandable control via external footswitches, an expression pedal, or MIDI
