Portable bridge-mounted piezo with volume control for steel-string acoustic guitar
With onboard volume control, SG-2 is a perfect choice in a piezo pickup for guitar. It's an acoustic bridge pickup that transfers the natural sound of your instrument without requiring modification.

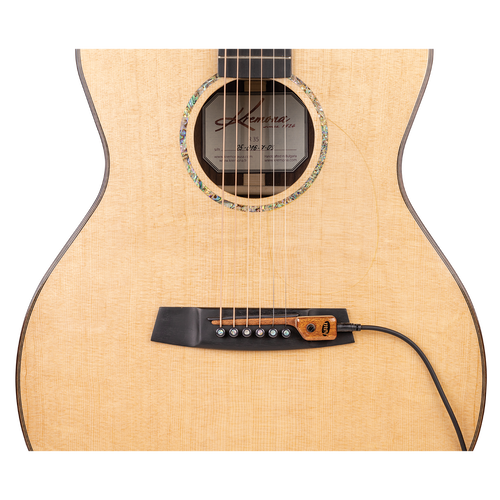

SG-2 installs safely and securely between the bridge saddle and pins, held in place by the tension of tuned strings.
Features:
Install with no modification
SG-2 installs safely and securely between the bridge saddle and pins, held in place by the tension of tuned strings.
Onboard volume control
Players can control their output signal while onstage or in the studio, right from the pickup-mounted volume knob.
Wood case
The piezo element is encased in elegant and stylish mahogany. The lightweight assembly offers maximum tonal sensitivity.
Natural Sound
SG-2 has a passive design that reproduces the natural sound of the instrument with no need for a battery.
Complete set
Two cables are included — a 9-ft. 1/8" to 1/4" and a 3-ft. 1/8" to female 1/4" jumper with safety clip to connect with your instrument cable.
DOWNLOAD INSTALLATION INSTRUCTIONS HERE
| SPECIFICATIONS | |
| Weight | 5.85g. / 0..21oz |
| Overall length | 100.5mm / 3.96" |
| Height / jack housing | 15.5mm / 0.61" |
| Active element measurements | |
| Length | 73mm / 2.87" |
| Width | 9.6mm / 0.38" |
|
Thickness |
2mm ± 0.05mm 0.079" ± 0.002" |
| Wood | Mahogany |
| Maximum Impedance | 500 |
| Cables | |
| Jumper cable with safety clip | 1meter / 3' |
| Amp cable | 3meter / 9' |
